Best Location for a Solar Water Pump: A Quick Guide
August 21, 2026
Running a Zeddflow 12V BLDC pump straight off solar power is one of the most common setups our customers ask about — whether it's for a farm irrigation line, a livestock trough, a garden fountain, or an off-grid cabin. The good news: it's a simple setup once you understand one key piece of hardware — the buck converter.
Can You Run a Zeddflow Pump Directly from a Solar Panel?
Not quite, and here's why. A typical 60W solar panel doesn't output a steady 12V. Under full sun, its open-circuit voltage usually sits around 21V — nearly double what your pump is rated for. Wiring a 21V panel straight into a 12V-rated Zeddflow pump risks overdriving the motor, and because solar output constantly fluctuates with cloud cover and sun angle, you'd have no way to keep the voltage stable even if it started out right.
That's where a buck converter comes in.

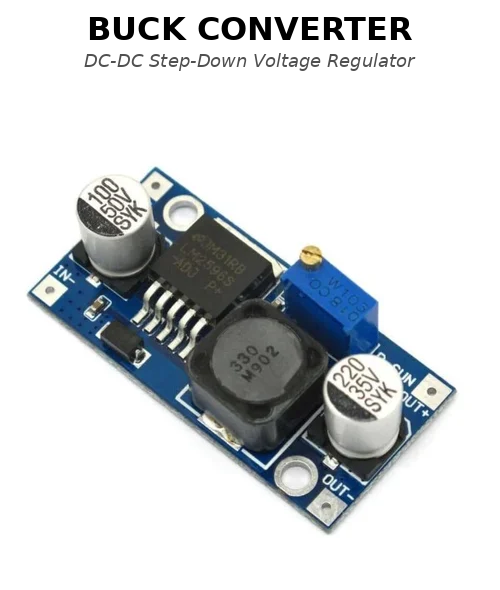

What Is a Buck Converter, and Why Do You Need One?
A buck converter (also called a DC-DC step-down regulator) sits between your solar panel and your pump. Its job is simple: take the panel's variable, higher-voltage output and "step it down" to a clean, consistent 12V (or 14V, depending on how you want to tune performance — more on that below) before it reaches the pump.
For a Zeddflow solar pump setup, you want an adjustable buck converter, not a fixed one. This lets you dial in the exact output voltage rather than being locked to a single setting, which matters because of the next part.
Wiring It Up: The Basic Setup

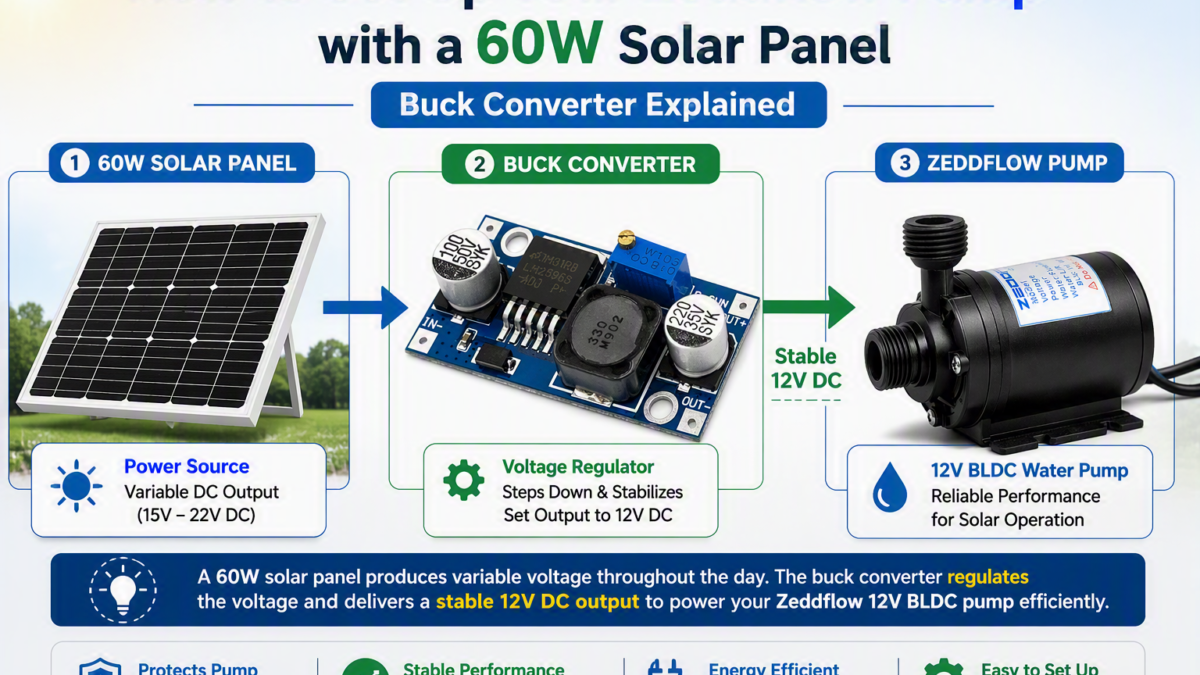

The full chain looks like this:
60W Solar Panel → Adjustable DC-DC Buck Converter → Zeddflow 12V Pump (submerged in water)
- Connect the solar panel's positive and negative leads to the buck converter's input terminals.
- Connect the buck converter's output terminals to the pump's power leads.
- Before powering the pump, set the buck converter's output voltage using its onboard potentiometer/dial (most adjustable converters have a small trim pot for this) — check with a multimeter on the output side.
- Fully submerge the pump in the water source before switching it on.
That last step isn't optional. Zeddflow pumps are submersible by design and have no suction capability — they only move water when the pump body itself is underwater. Running it dry, even briefly, can damage the motor.
Dialing In Voltage: 12V vs 14V
| Voltage | Approx. Vertical Lift |
|---|---|
| 12V | ~3m |
| 14V | ~3.5–4m |
If your setup needs to push water higher — say, up to an elevated tank — set your buck converter closer to 14V to get that extra lift. If you're pumping to something at ground level or just need flow rather than height, 12V is fine and keeps the motor running in its standard range.
Keep in mind: flow rate drops as lift increases. The higher you push water vertically, the less volume you'll get per hour — that trade-off doesn't change no matter how you tune the voltage.
Don't Overlook Your Tubing
Voltage isn't the only variable that affects performance — tube diameter matters just as much. Zeddflow's lift specs are tested with 9mm ID (inner diameter) soft tubing, and that's what we recommend for real-world setups. Going wider than 9mm actually reduces lift capacity, since a larger tube gives the water more room to fall back rather than being pushed forward efficiently. Stick close to 9mm ID for the flow and lift numbers to match what's on the spec sheet.
Quick Setup Checklist
- 60W solar panel with clear sun exposure
- Adjustable DC-DC buck converter (not fixed-voltage)
- Multimeter to verify output voltage before connecting the pump
- 9mm ID soft tubing
- Pump fully submerged before power-on
- Voltage set to 12V (standard lift/flow) or 14V (extra lift, less flow) based on your needs
Why This Setup Works So Well Off-Grid
Because Zeddflow pumps are BLDC (brushless DC), they're efficient enough to run comfortably on modest solar input without needing a battery bank in many daytime-use cases — think garden fountains, livestock watering, or irrigation during daylight hours. Pair that efficiency with a properly configured buck converter, and you get a low-maintenance, dependable water pumping setup that runs entirely off the sun.
Have questions about sizing a buck converter for your specific setup, or want to explore Zeddflow's dual power pump for setups that also need battery backup? Get in touch — we're happy to help you plan it out.
